SONOFF Mini R4 /Zbmini L2 Smart Zigbee/Wifi Switch Two-Way Control Smart Home Works With Alexa Google Home Yandex Alice smartthi

Description

Note1:

MINIR4(WiFi version) is a wifi switch,connect to Internet directly;

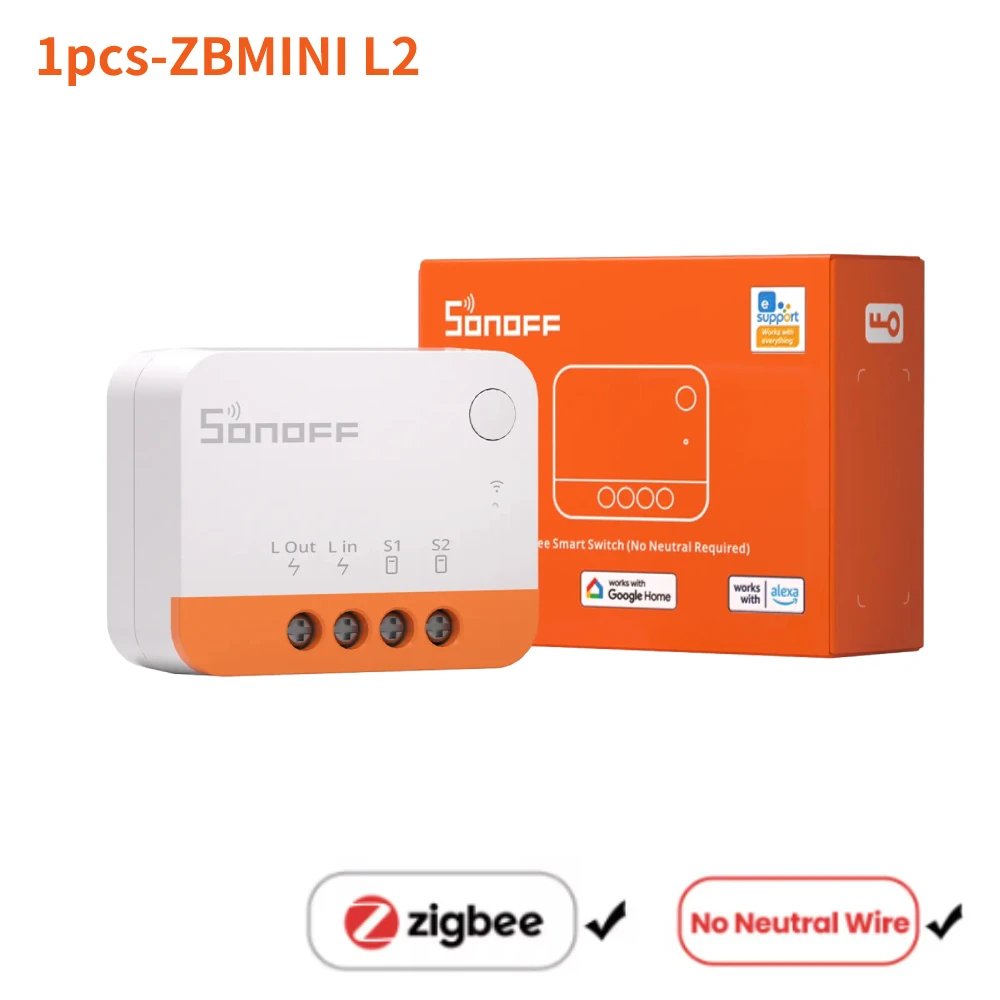

ZBMINIL2(Zigbee version) is a zigbee switch,must work with zigbee gateway to connect to Internet;

Note2:

MINIR4(WiFi version) fits Neutral and Live wiring systerm;

ZBMINIL2(Zigbee version) fit no neutral(N line) wiring systerm.

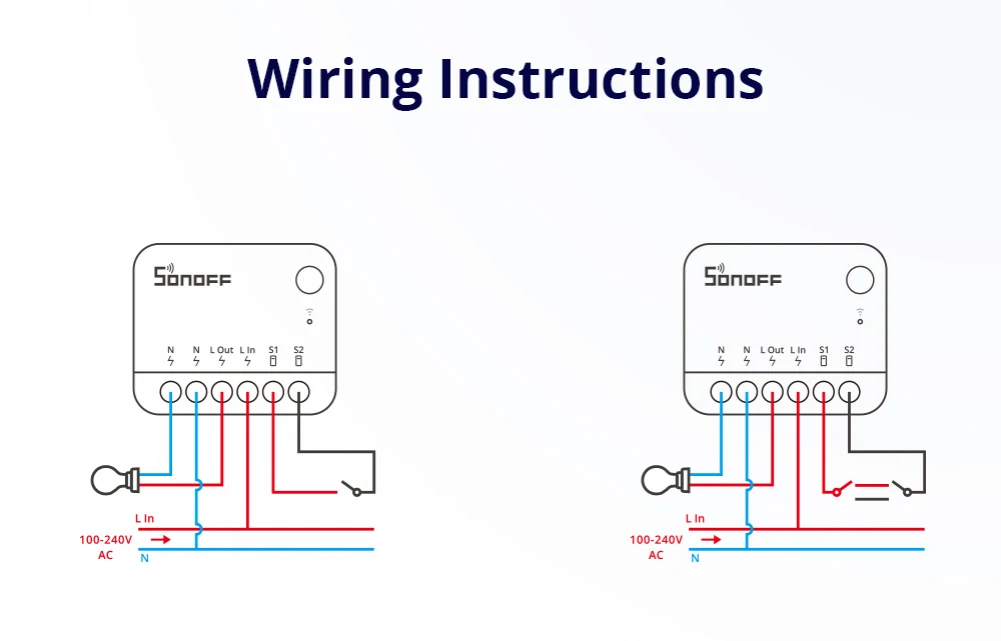

MINIR4 Wiring Diagram Reference：

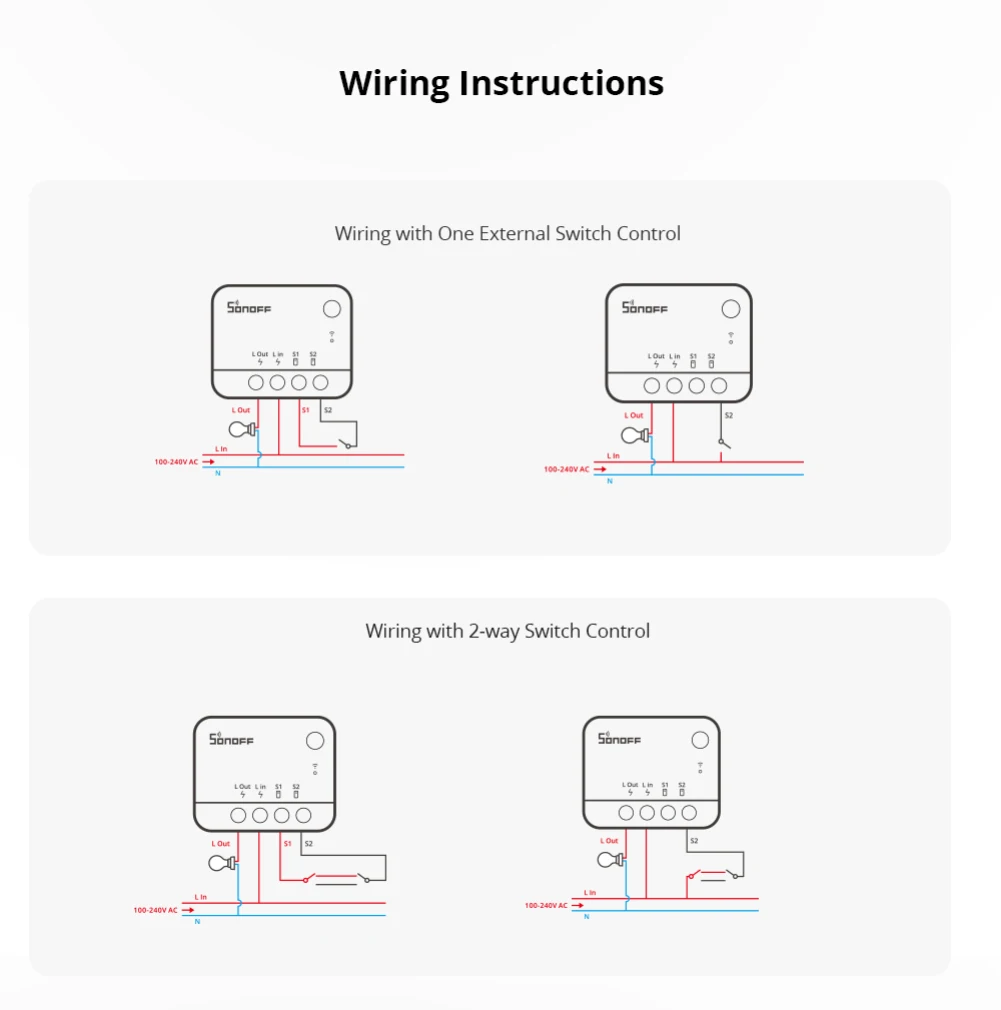

ZBMINIL2 Wiring iagram ference:

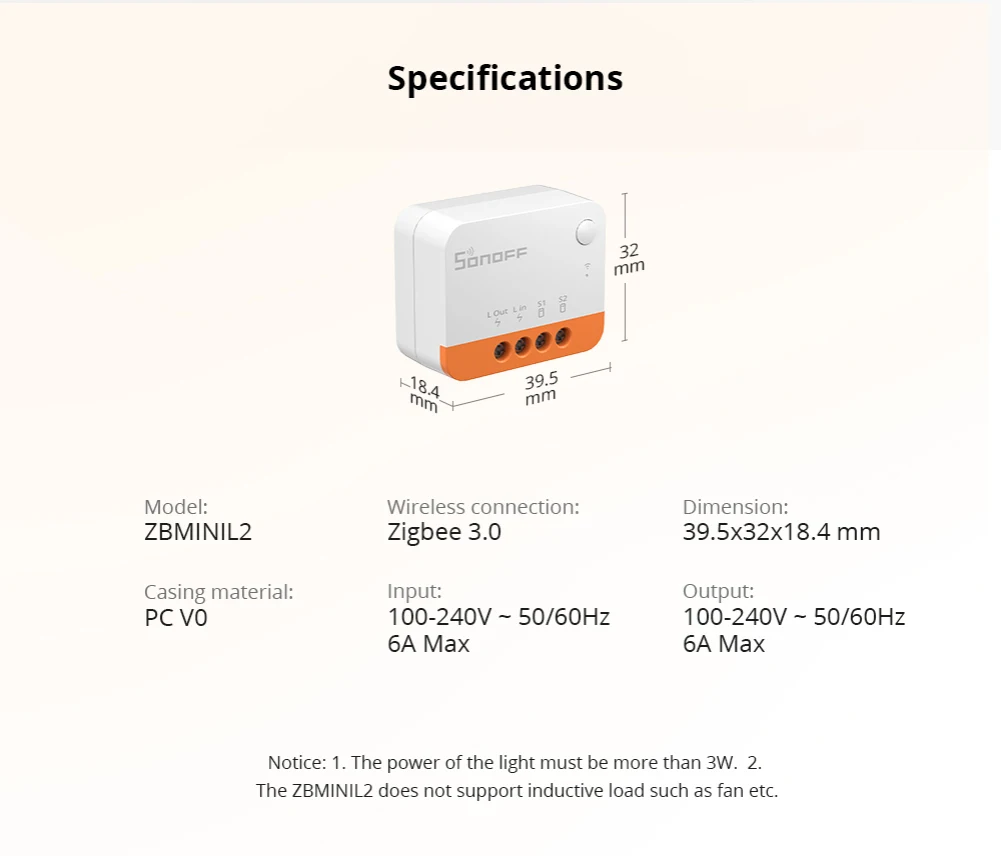

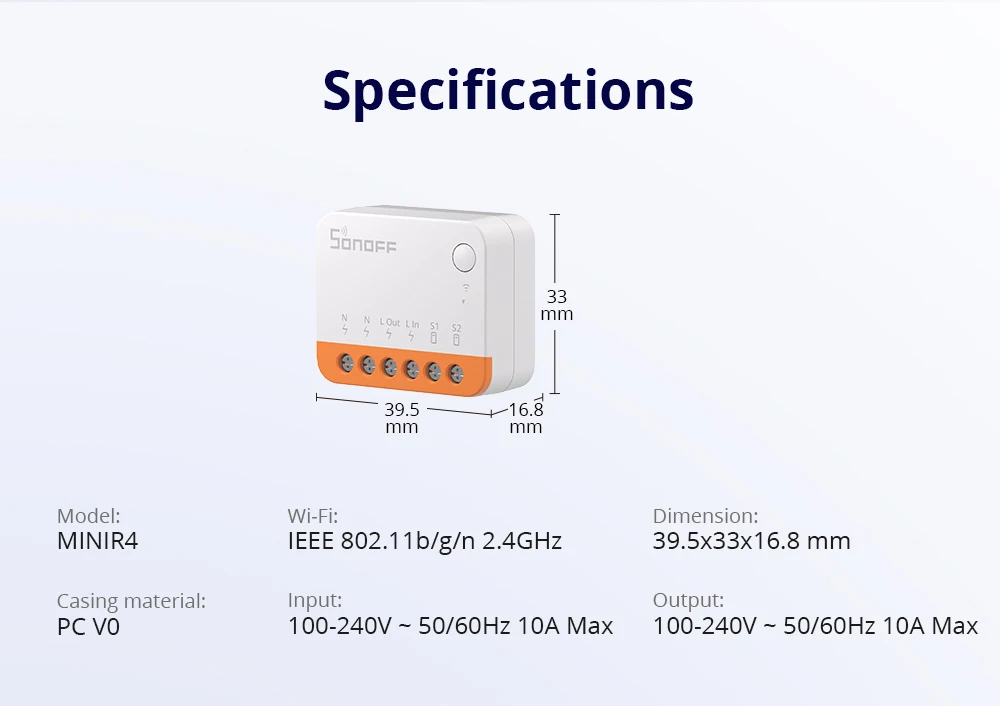

Specifications:

Model:MINIR4/ZBMINIL2

Dimension:39.5×33×16.8 mm

casing material: PC V0

Wifi:IEEE 802.11blg/n 2.4GHz

Input:100-240V ~ 50/60Hz 10A Max

outputL100-240V ~ 50/60Hz 10A Max

Feature：

【Super Tiny Size】Its compact size allows it to be installed in various mounting boxes, including the smallest European standard.

【External Switch Control】Easily connect to the momentary switch, door exit switch, SPDT switch, latching switch, and even dry contact sensors.

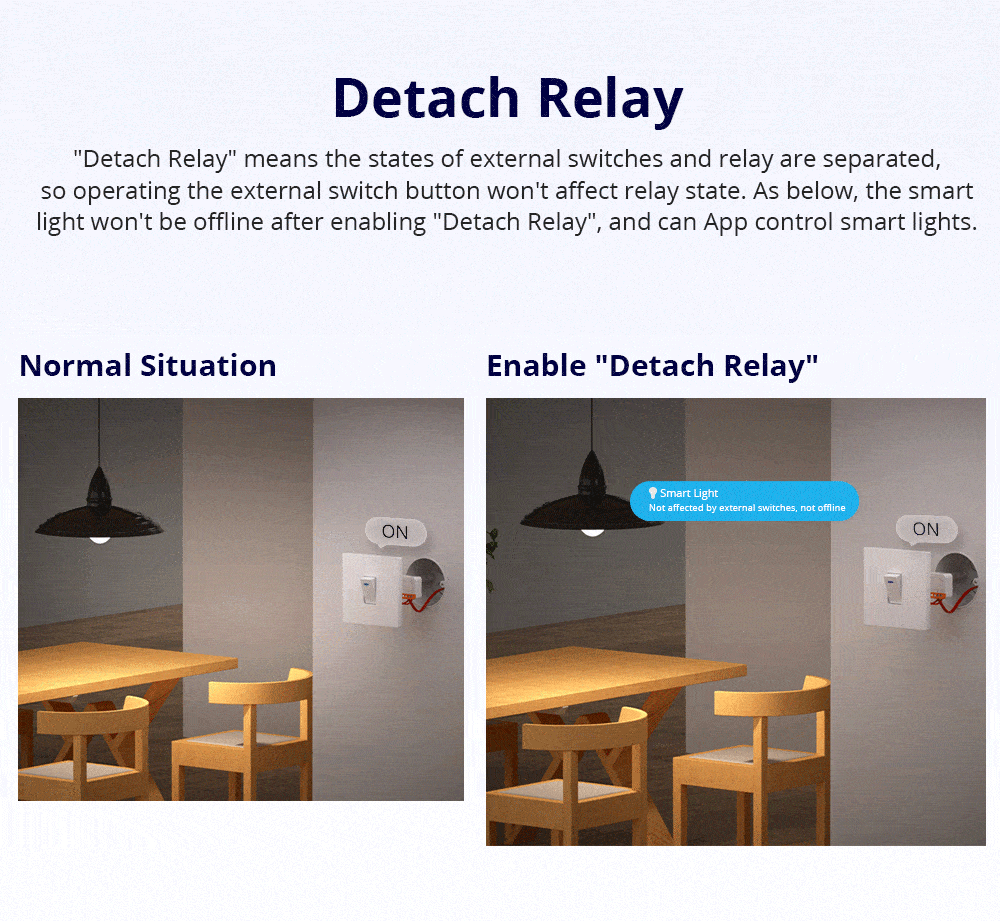

【Detach Relay Mode】MINIR4 has “detach relay” mode, which means the states of external switches and relay are separated, so operating the external switch button won’t affect the relay state.

【eWeLink-Remote Control】MINIR4 is a smart switch with the gateway function of “eWeLink-Remote”. You can add “eWeLink-Remote” sub-devices, R5 and S-MATE, after pairing with MINIR4, both R5 and S-MATE can act as remote controllers to control MINIR4 locally through the eWeLink-Remote signal.

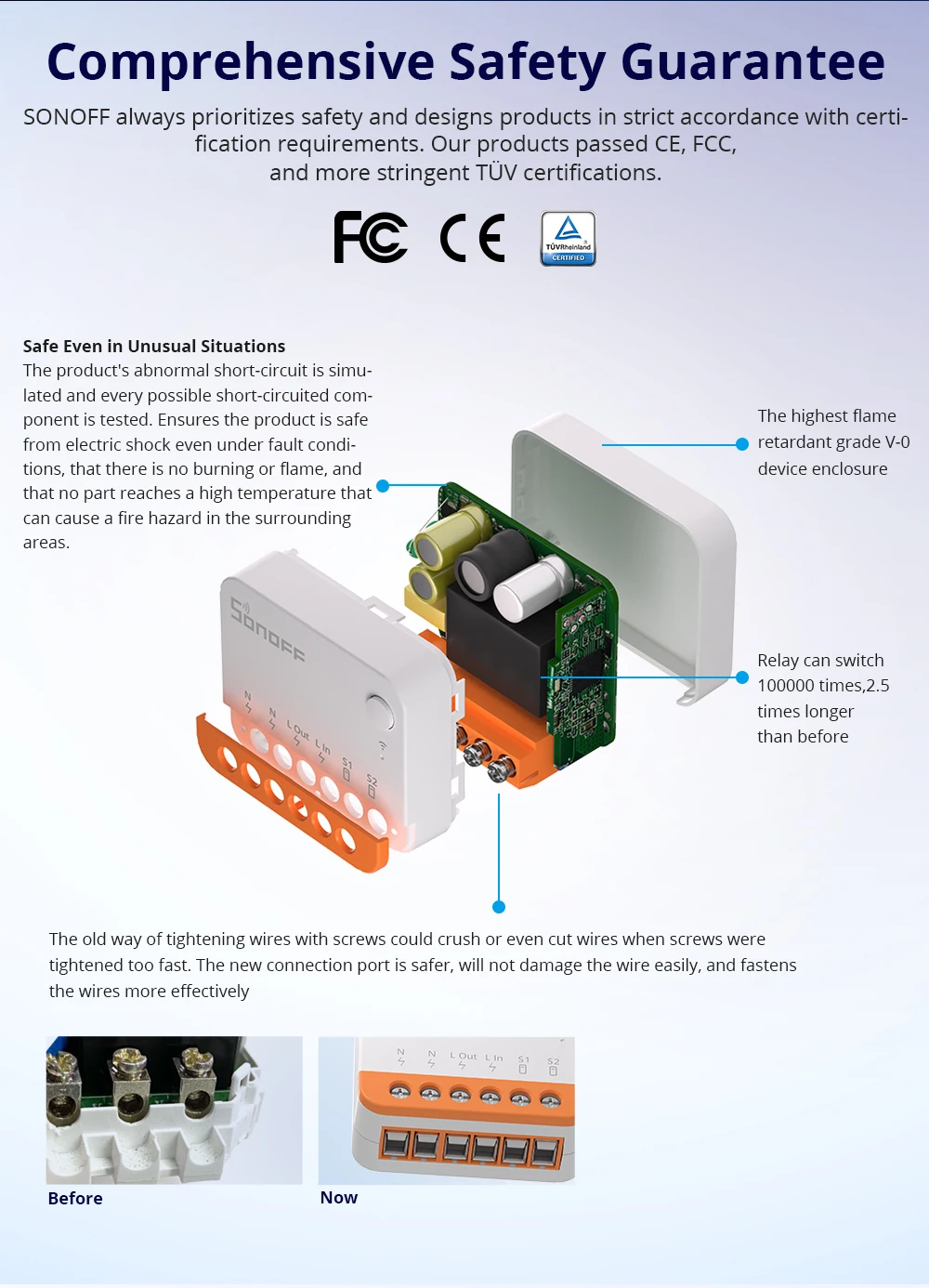

【Safe & Reliable】TÜV, CE, and FCC certifications ensure a safer and more reliable product.

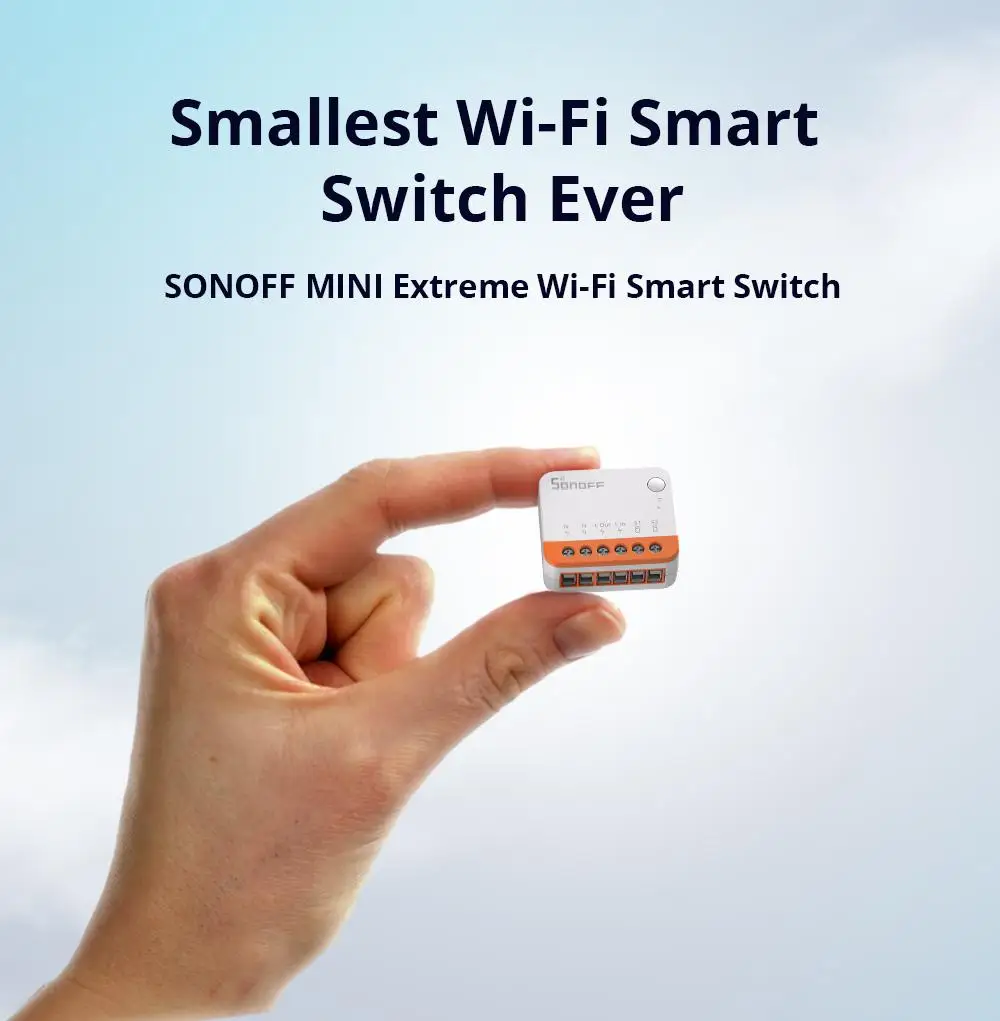

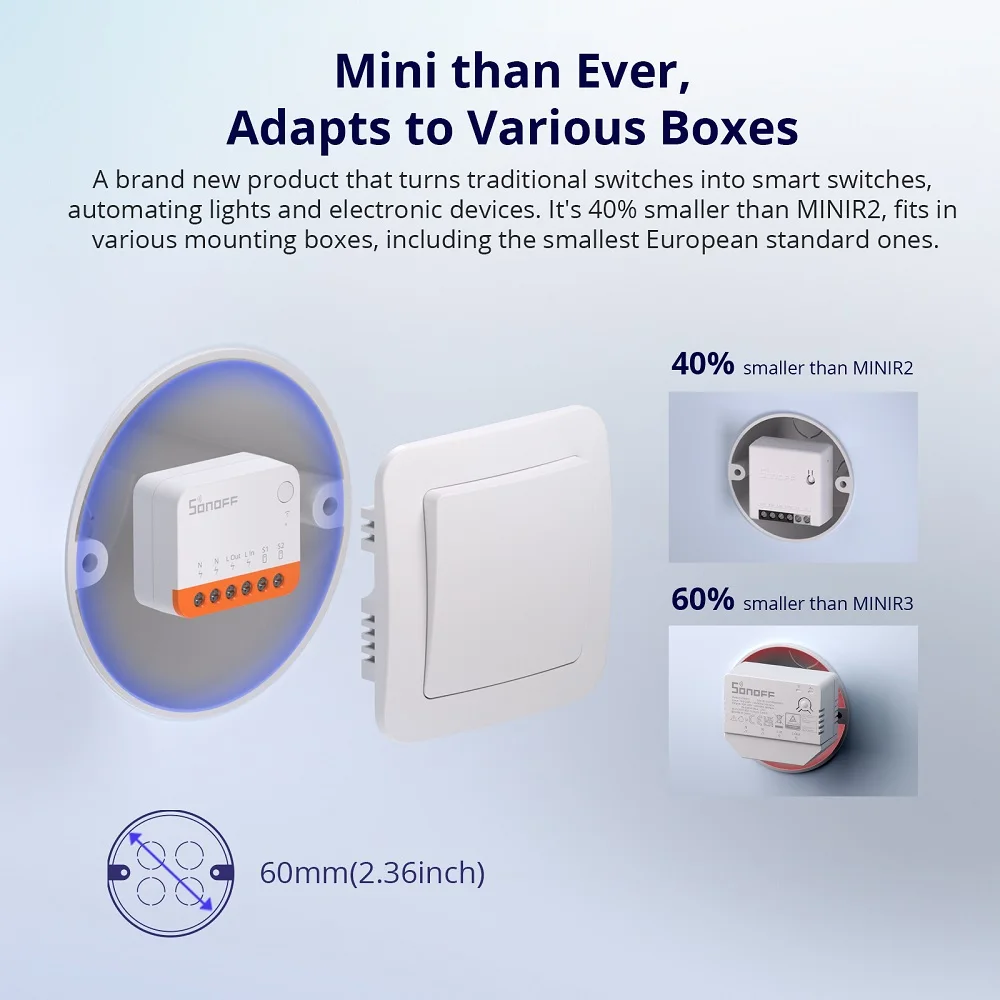

Mini than Ever, Adapts to Various Boxes

A brand new product that turns traditional switches into smart switches, automating lights and electronic devices. It’s 40% smaller than MINIR2, fits in various mounting boxes, including the smallest European standard ones.

Ultra-fast ESP32 Chip
