R503 New RGB Ring Indicator Light LED Control Round Fingerprint Module Access Control Arduino

Name: R503 New RGB Ring Indicator Light LED Control Round Fingerprint Module Access Control Arduino
SKU: 2251832867468787
Price: 26.00 USD
Availability: InStock

$26.00

Color

Clear

Brand Name : grow
Hign-concerned Chemical : none
Origin : Mainland China
Model Number : R503
Smart home platform : other
Certification : CE
Interface : RS232 (TTL)
Voltage : DC 3.3V
Fingerprint capacity : 200

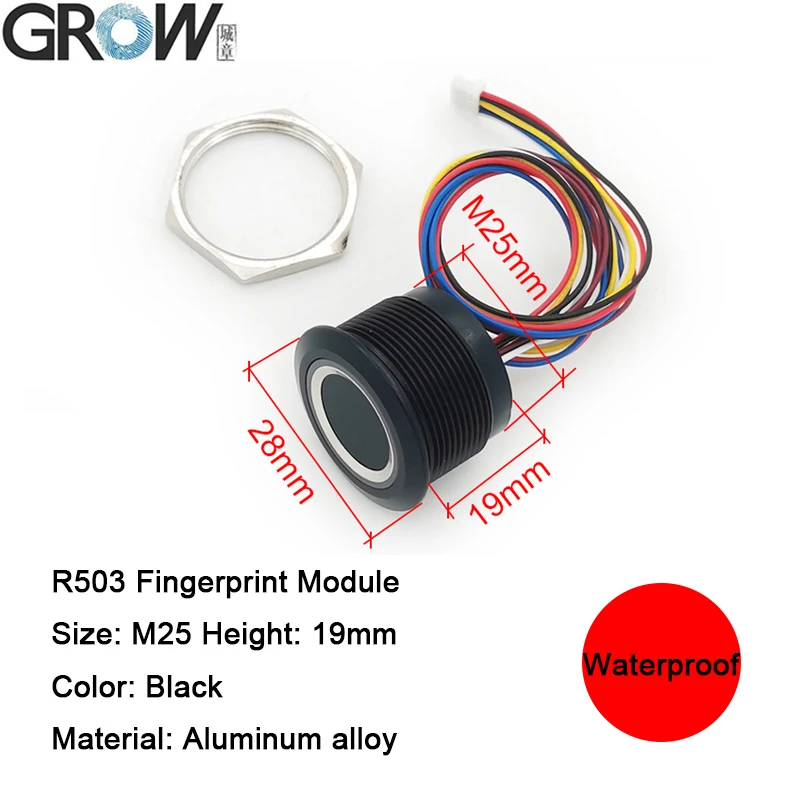

Fingerprint module external size : 28mm
Fingerprint module inner size : 25mm(M25)
Fingerprint module height : 19mm
Effective collection area : Diameter 15mm
Resolution : 508 DPI
Sensing array : 192*192 pixel
LED color : RGB
LED control : Yes
Standby current(finger detection) : 3.3V,2uA
Working current(Fingerprint acquisition) : 20mA
Weight : 32g

GROW R503 Round Capacitive Fingerprint Module/Sensor/Scanner

Main Function:

1.Integrated image collecting and algorithm chip together, ALL-in-One
2.The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate.

3.The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

Specification:

SPECIFICATION
Model	R503
Type	Capacitive Fingerprint Module
Interface	UART(TTL)
Resolution	508 DPI
Voltage	DC 3.3V
Fingerprint Capacity	200
Sensing array	*192192 pixel**
Working current	20mA
Standby current	Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size	Diameter 28(mm)
Fingerprint module inner size	Diameter 25(mm) (M25)
Fingerprint module height	19(mm)
Collection area	Diameter 15.5 (mm)
Finger Touch Function	Yes
LED Color	RGB
LED Control	Yes
Connector	SH 1.0mm 6Pin
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work environment	-20C —60C
Work Humidity	10-85%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

The R503 already updated to RGB color and have 7 colors which can be controlled by command and provides threads with a diameter of 25mm for your easy installation.

Note:

1.IP65 Waterproof. When the temperature of the use environment fluctuates greatly, it may affect the glue, thus affecting the waterproof effect.

2. RGB LED Color, have 7 colors which can be controlled by command.

3. The Different between R503 and R503-5V and R503-M22 and R503Pro and R503S:

	R503	R503-5V	R503-M22	R503Pro	R503S
Power Supply	DC 3.3V	DC 5V	DC 3.3V	UART: DC 3.3V USB: DC 5V	DC 3.3V
Sensing Array	192*192 Pixel	192*192 Pixel	192*192 Pixel	192*192 Pixel	160*160 Pixel
Fingerprint Capacity	200	200	200	1500	150
Size	M25	M25	M22	M25	M25
Connector	SH1.0mm 6pin	MX1.25mm 6pin	SH1.0mm 6pin	SH1.0mm 6pin	SH1.0mm 6pin
