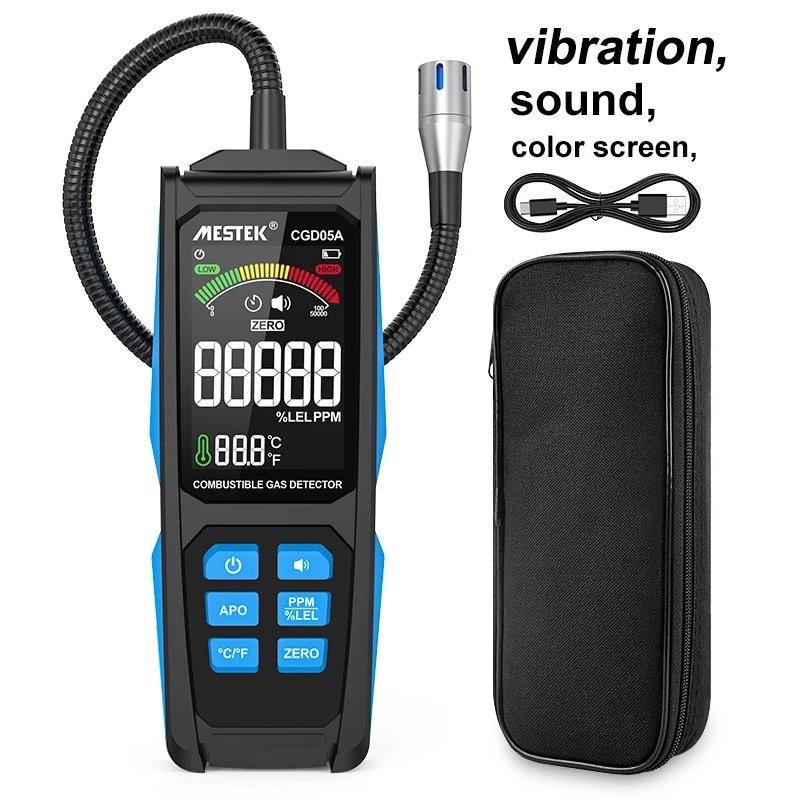

CGD05A Combustible Gas Detector Color Screen Gas Analyzer Charging PPM LEL Unit Triple Alarm Natural Gas Leak Meter LPG Meter

• Brand Name : ZLLJMETER
• DIY Supplies : ELECTRICAL
• Origin : Mainland China
• Model Number : CGD05A
• With LCD Screen Or Not : Yes
• Certification : CE
• Is Smart Device : no
• Measurement Range : 50-5000PPM/0-100%LEL
• Gas Type : Combustible Gas
• Product Name : Combustible gas detector
• Detect gas : Natural gas, gas, liquefied petroleum gas
• Detect traffic : 1L/min
• Gas resolution : 1% LEL/1PPM
• Gas measurement range : 50-5000PPM/0-100% LEL (based on methane)
• Charging interface : USB Type-C
• USB charging : 5V/1A
• power supply : Built in 18650/200mAh/3.7v
• Charging time : About 4 hours
• measurement accuracy : < +% 5LEL, <+-500PPM
• Sampling method : Diffusion type
• response speed : 2 seconds
• Calibration method : Automatic calibration within 30 seconds of startup
• Automatic shutdown : About 10 minutes
• display screen : LCD
• Alarm method : Sound, vibration, screen display
• Preheating time : 30 seconds
• Working current : Approximately 185mA
• working temperature : 0-50°C
• Working humidity : 0-70% RH
• Storage environment : -10~50℃ (5% -95% RH)
• Flexible metal hose length : 270mm
• Item 1 : gas analyzer
• Item 2 : combustible gas detector
• Choice : yes
• semi_Choice : yes

Combustible gas detector

*USB type-C charge

*Triple alarm

*VA color screen

The instrument automatically calibrates the 30 second countdown when turned on, and is equipped with an 18650 lithium battery,Move the probe to the location of the gas leak for measurement

Featured

Quickly detect leaked combustible gases and take strict precautions against safety hazards

*Import sensor

*USB-C charging

*Fast response speed

*Triple alarm

*Data zero function

*Flexible metal hose

*Conversion of measurement units

*VA color screen

*Temperature measurement

Product Scope of Application

The detector is suitable for gas pipeline leakag e detection,household gas prevention oil and gas extraction, tunnel and mine operations, chemical engineering, gold treatment, refiningldeal testing instruments for industries such as biochemical medicine.

Detected combustible gas

Detect various leaked combustible gases

*Methane/Natural Gas

*ethanol

*Gasoline/Alcohols

*propane

*benzene

*ethylene oxide

*hexane

*Butane

*ethylene

*Coal Gas/carbon monoxide

*acetone

*ethane

Flexible metal hose

Extended flexible probe, random bending, easy to handle various complex measurement environments

USB Type-C Charge

Built in 18650/2000mAh/3.7V lithium battery, 5V 1A charging cable Fully charged in approximately 4 hours

Triple alarm Sound/vibration/screen display

When the gas leakage value detected is above 10% LEL, the instrument will emit a sound and vibrate,Screen display HIGH alarm

High precision sensors

Anti interference sensor with high sensitivityand fast response speed

Conversion of concentration units

One click conversion of PPM and% L EL measurement units

VA reverse display color screen

Ultra clear digital/analog dual display

Application scenario display

Can be used for various scene measurements, with simple,fast, and sensitive operation
