General Information
Brand
Scotchlok™
Barrel Style
Interlocking Barrel
Disconnect Type
Female
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Country Of Origin
United States
Sold As
Case
Lead Time
10 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.080 Inch
Barrel Length (Imperial)
0.25 Inch
Connection Width (Imperial)
0.25 in
Connection Width (Metric)
6.35 mm
Male Tab Width (W’)
0.250 Inch
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.5 mm²
Maximum Insulation Outer Diameter (Imperial)
0.145 in
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.5 mm²

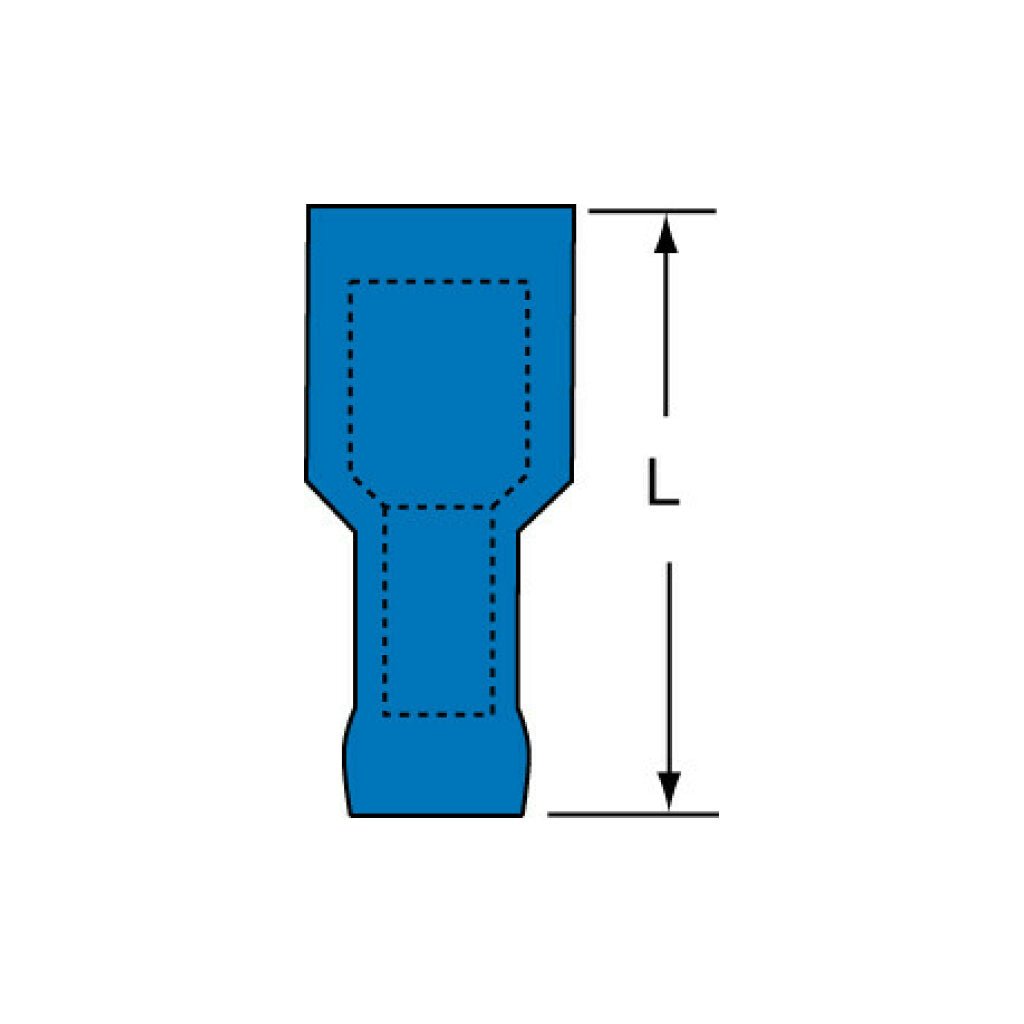

Overall Length (Imperial)
0.83 in
Pad Width
0.25 in
Tab Width
0.187
Barrel Length Imperial
0.25 Inch
Conductor Sizes Imperial
16 – 14 AWG
Overall Length Imperial
0.83
Width
3.62 in
9.21 cm
9.21 cm
Height
5.12 in
13.02 cm
13.02 cm
Length
9.37 in
23.81 cm
23.81 cm
Volume
174.15 cubic inch
2853.81 cm3
2853.81 cm3
Weight
19.04 oz
539.77 g
539.77 g
Other Details
CSA File Number
LR22190
Fastener Orientation
Female
UL File Number
E70512
Units Per Case
500.0
Material and Composition
Insulation Material
Nylon with Insulation Grip
Packaging and Shipping
Packaging
100 per bottle
